Research-grade biosensing · In production now

The 32-channel EEG board you actually own.

The BCI-32 delivers 32 channels of clinical-quality EEG with a fully customizable STM32 firmware stack. Every board ships with an ST-LINK/V3 programmer-debugger, its firmware download file, and the complete source code — flash it, fork it, make it yours.

Explore the BCI-32 — $2,300 See how we compare to OpenBCI
32EEG channels
$71.9per channel*
100%open firmware
24-bitADS1299 AFE

*We charge $71.9 per channel. OpenBCI charges ~$156/channel across their lineup (Cyton $1,249 / 8ch, Cyton+Daisy $2,499 / 16ch).

Why MasterMind BCI

Built for people who modify their tools

Most EEG vendors ship a black box. We ship the box, the keys to the box, the programmer that opens it, and the source code inside it.

Fully customizable firmware

An STM32H7 runs the show — and you get every line of its C source, STM32CubeProjects, and a compiled firmware file ready to flash. Change filters, streaming protocols, impedance checks, anything.

ST-LINK/V3 in every box

Each BCI-32 ships with a genuine ST-LINK/V3 MINIE debugger. Plug into the onboard SWD header and use STM32CubeProgrammer to flash your builds in seconds — no vendor lock-in, ever.

Firmware file at purchase

The moment your order ships you receive a download link with the matching firmware binary (.hex/.elf), release notes, and regression-test logs — so you can always return to a known-good state.

32 clinical-grade channels

Eight TI ADS1299 front-ends: 24-bit deltasigma ADCs, <1 µV input noise, programmable 1–500 Hz bandwidth, lead-off detection and bias drive on all 32 channels.

3D-printed custom-fit cap

Send us three tape measurements and we print a cap shell with holders for standard electrodes at your 10–20 positions — preview it on a live model before you order.

Everything EEG, one catalog

Wet, dry, gel, paste, caps, cables — the full consumables catalog in one cart, shipping direct from partner warehouses in 2–5 business days.

The math

More channels. Less money.

MasterMind BCI-32
$2,300 / 32 channels
  • ✓ $71.9 per channel
  • ✓ 2× the channels of a $2,499 Cyton+Daisy, for less money
  • ✓ ST-LINK/V3 debugger + firmware file + full source included
  • ✓ USB-C streaming + onboard SD recording
OpenBCI Cyton + Daisy
$2,499 / 16 channels
  • ✗ $156.2 per channel
  • ✗ Half the channels for slightly more money
  • ✗ Programmer/debugger sold separately
  • ✗ BLE radio throughput limits sample rate

Competitor prices from shop.openbci.com, October 2026. Side-by-side details on the compare page.

Featured

Start here

Flagship

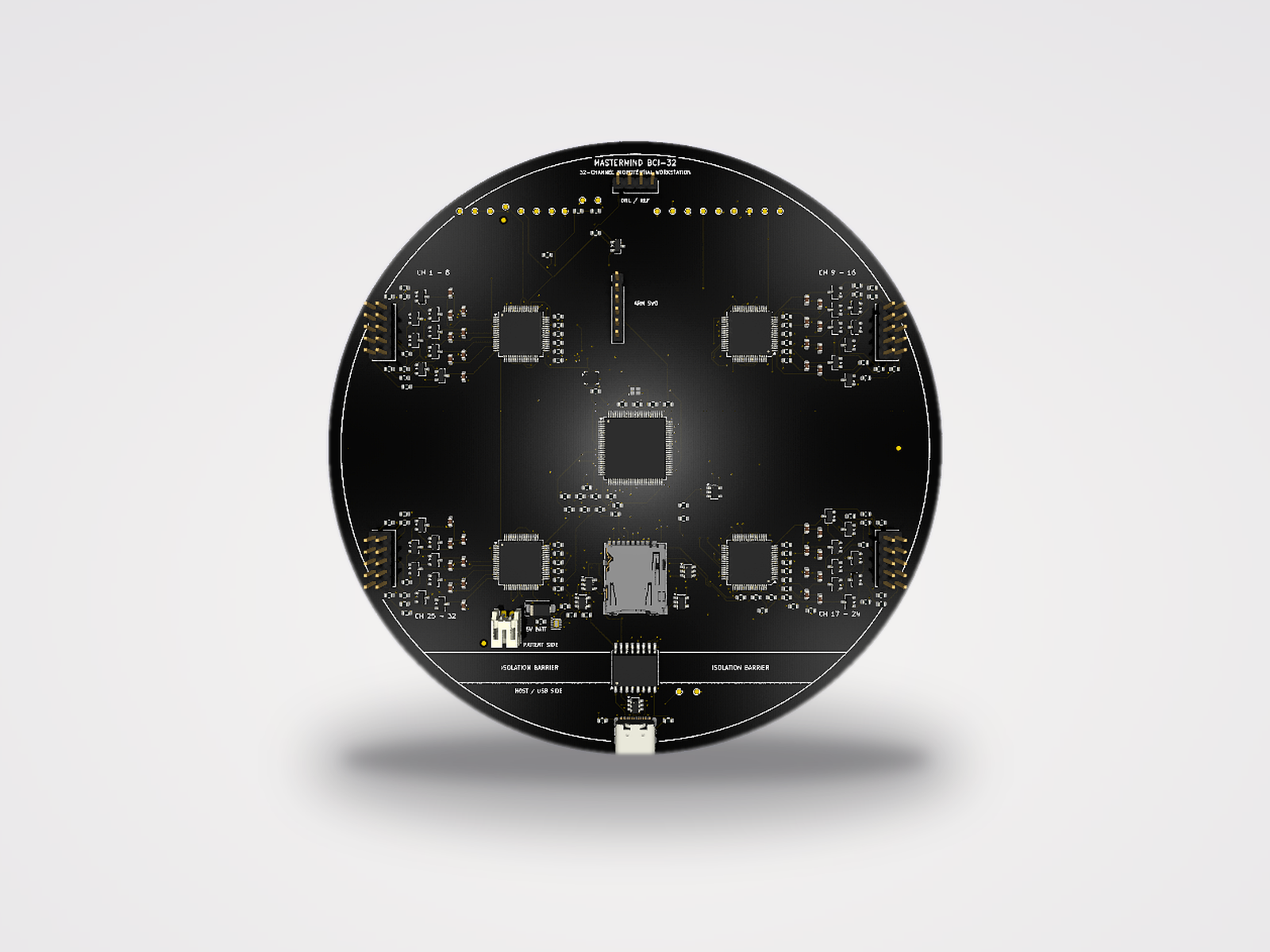

BCI-32 EEG Board

32 channels, 8× ADS1299, STM32H7, USB-C + SD. ST-LINK/V3 flasher and firmware file in the box.

$2,300View board
Custom-fit

Custom 3D-Printed Electrode Cap

Printed to your head measurements, with holders for standard electrodes and a live montage preview.

from $168Configure
Made to order

BCI-128 — 128 Channels

High-density research system built to your spec. Instant live quote.

from $7,000Request quote
Browse the full catalog — electrodes, gels, caps & more

Need 64 or 128 channels?

Tell us your spec and get an instant cost estimate plus a formal quote within 48 hours. Labs, BCI teams and research consortia welcome.

Request a build
